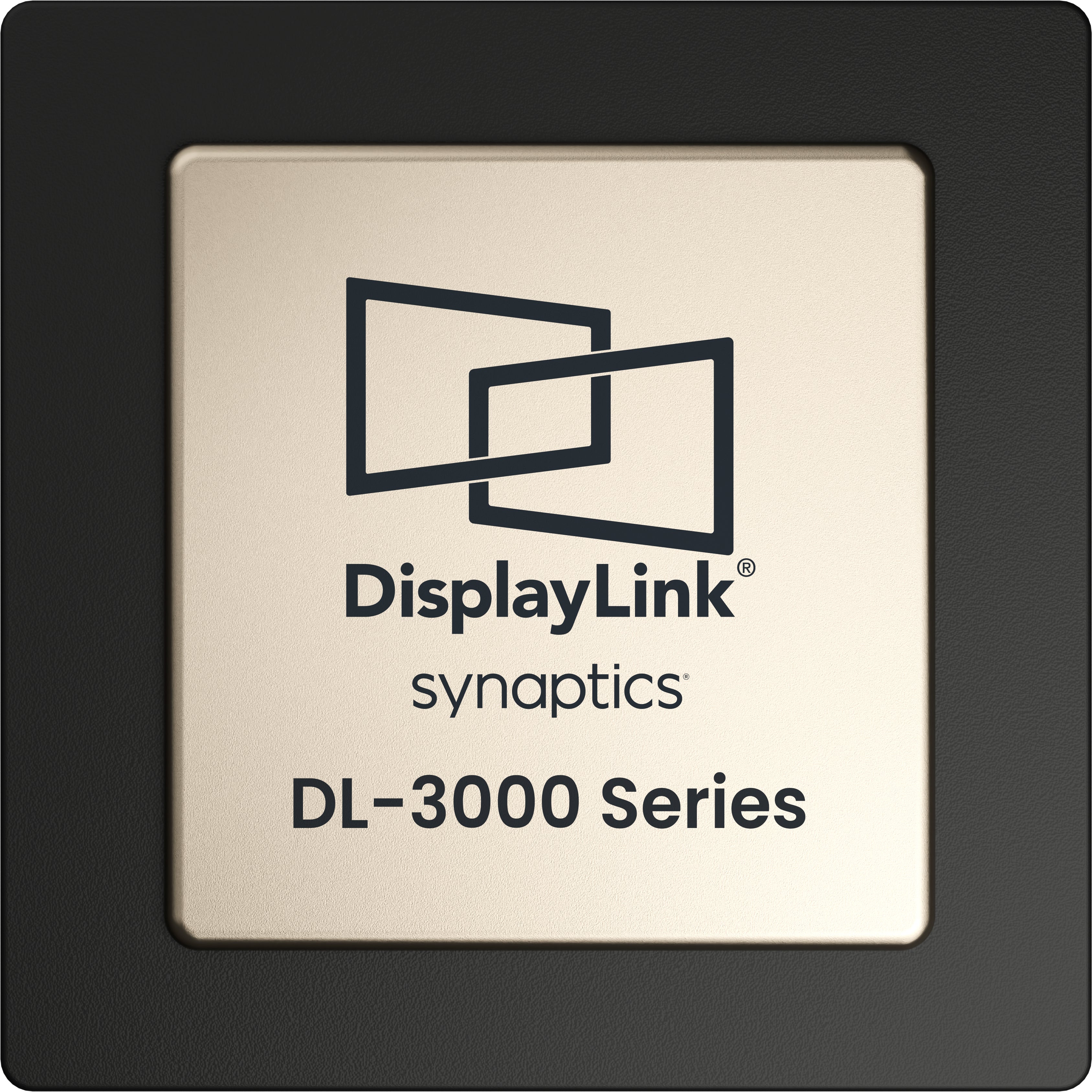

DisplayLink DL-3xxx Series
Product Family Overview

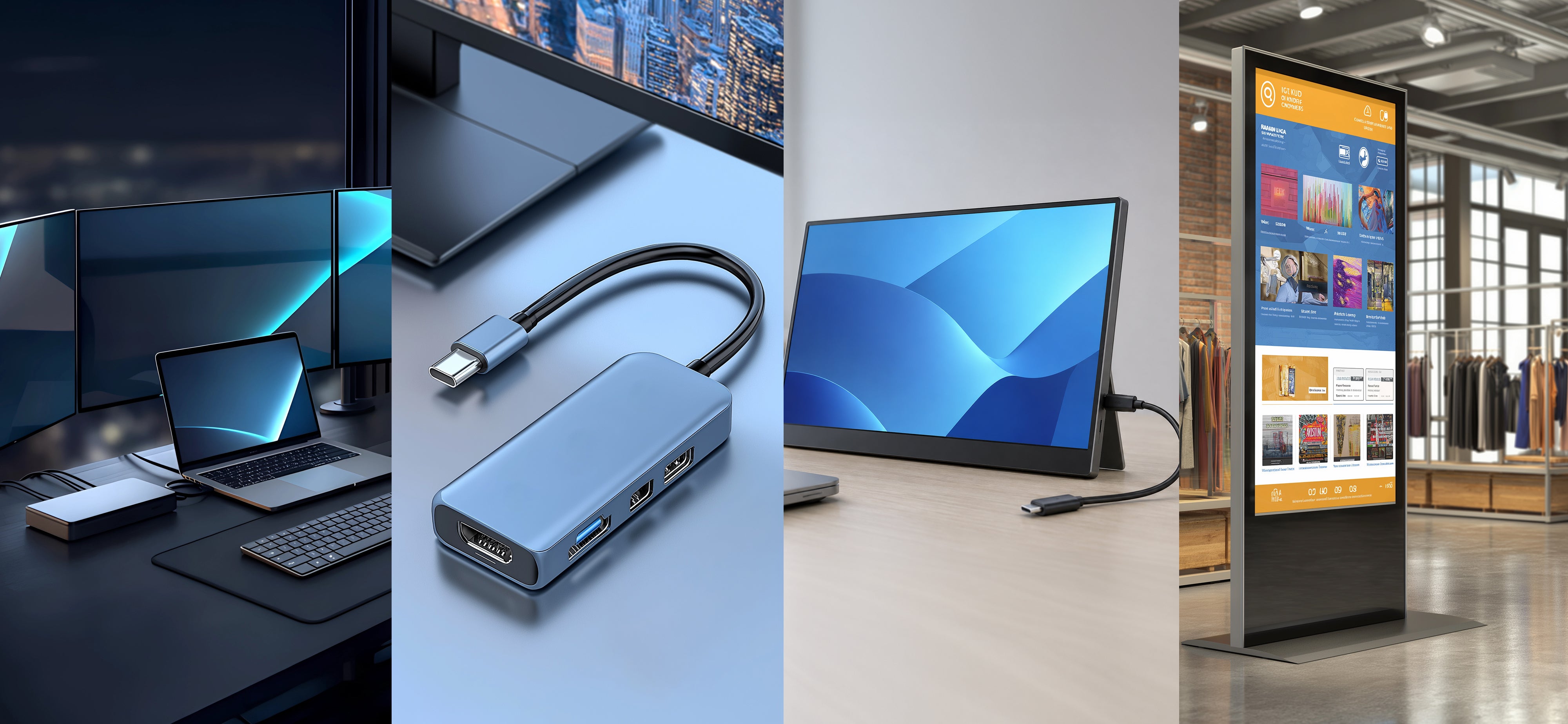

Nominated as a CES Best of Innovation Honoree, the DisplayLink DL-3xxx family, trusted by the likes of Dell, Lenovo, HP, ASUS, Google, Targus, Yamaha, Zebra, Honeywell, Plugable and many others, has been utilized in hundreds of products worldwide across enterprise, conferencing, industrial, embedded and retail segments.
Enabling either a single 2K60 display or dual 1080p displays, the DL-3xxx family is ideal for entry-level designs enabling integrated HDMI, DVI, VGA & support for DP 1.1 plus Gigabit Ethernet and 5.1-channel Audio all over USB 3.0. Additional support for WOL, MAPT, and PXE boot satisfies enterprise requirements.
For commercial applications, the DL-1900E variant features Ethernet ingress to support your signage, meeting room and network video needs. Integrated Digital RGB and support for eDP make it suitable for a broad range of embedded and portable panel use cases.
Contact Synaptics Sales for further details.
Features
| Feature / IC | Earlier DL-1x5 IC | DL-3100 | DL-3500 | DL-3700 | DL-3900 |
|---|---|---|---|---|---|
| Applications | - |
|
|
|
|
| Video Outputs | 1 | 1 | 1 | 1 | 2 |
| Maximum Resolution | QWXGA | QWXGA | WQHD | WQHD | 1× WQHD or 2× QWXGA |
| Ingress | USB2 | USB3 5Gbps | USB3 5Gbps | USB3 5Gbps | USB3 5Gbps |
| Memory |
|
|
|
|
|
| LVDS | Integrated | - | - | - | - |
| eDP | - | - | Supported | Supported | Supported |
| Digital RGB | Integrated | Integrated | - | - | - |
| VGA | Integrated | Integrated | Integrated | Integrated | Integrated |
| DVI | Integrated | Integrated | Integrated | Integrated | Integrated |
| HDMI | Supported | - | Integrated v1.3 | Integrated v1.3 | Integrated v1.3 |
| DP | Supported | - | Supported v1.1 | Supported v1.1 | Supported v1.1 |
| Codec | DL2 | DL3 | DL3 | DL3 | DL3 |
| HDCP | - | Integrated | Integrated | Integrated | Integrated |
| Ethernet | - | - | - | 1Gbps | 1Gbps |
| Audio | - | - | 5.1 Channel | 5.1 Channel | 5.1 Channel |
| DDC/CI | Limited | Supported | Supported | Supported | Supported |
| DisplayLink Direct | - | Supported | Supported | Supported | Supported |
| Enterprise Features | - | - | - |
|
|
Certification
DisplayLink certified not only signifies that the product is enabled by one of our many award-winning chipsets, it also highlights that the design has been scrutinized and meets the stringent design needs to carry our certified brand mark. Buying products that carry the brand equally signifies to end users a level of uncompromisable compatibility, allowing products from multiple vendors to work seamlessly together. Building confidence, ensuring usability, enabling freedom of choice, plus our unequaled extensibility.
Products
DL-3900
How to use Philips USB-C Docking monitor 272B7QUBHEB - mini PC & Windows Hello webcam
Learn more
| Product P/N | Application | Input | Video Outputs | Integrated Features | Support | Max Resolution | Ethernet | Audio |
|---|---|---|---|---|---|---|---|---|
| DL-3700 | Kiosk Rugged Cradles | USB3 5Gbps | 1 | HDMI 1.3 DVI/VGA | DP 1.1 Wol/MAPT/PXE boot | 1x 2K60 | 1Gbps Ethernet | 5.1 Channel |
| DL-3500 | Projector Kiosk Embedded Display | USB3 5Gbps | 1 | HDMI 1.3 DVI/VGA | DP 1.1 | 1x 2K60 | n/a | 5.1 Channel |
| DL-3100 | Projector Embedded Display | USB3 5Gbps | 1 | Digital RGB DVI/VGA | n/a | 1x 2048x1152 | n/a | n/a |
| DL-1900E | Network Display Signage Robotics | Ethernet | 2 | HDMI 1.3 | n/a | 2x 1080p | 1Gbps Ethernet | 2 Channel |
